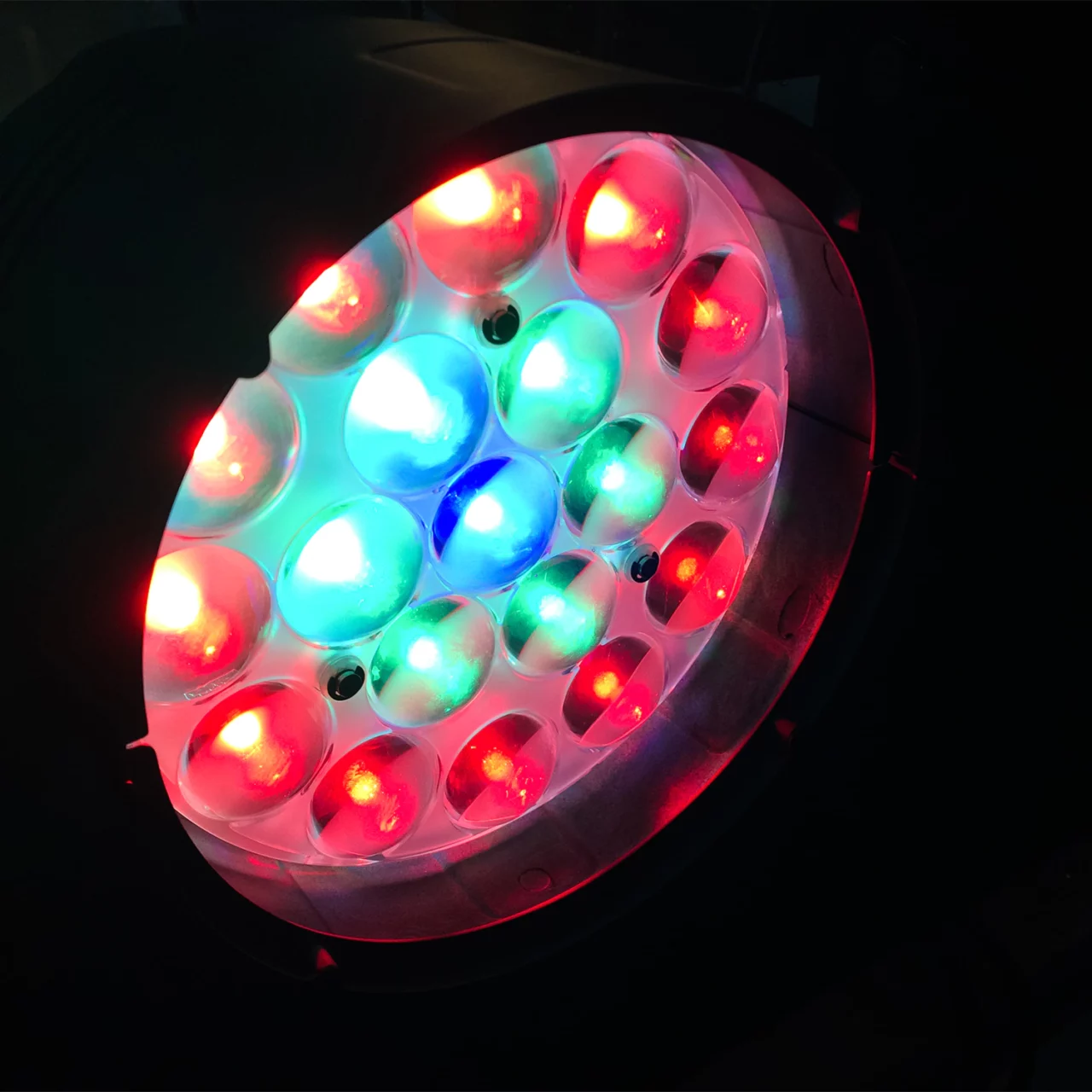

Par 1519 Zoom

Par 1519 Zoom is a 19pcs x 15Watt RGBW 4in1 LED par light with motorized zoom. The LEDs can be controlled in 3 separate zones. It’s full aluminum housing, 15° – 60° zoom range, high brightness output, light weight body makes it easy to handle and install. The fixture also come with powercon in & out connection and LCD display.

  • 19 x 15W 4in1 LEDs
  • RGBW LED color mixing
  • Motorized zoom from 15° – 60°
  • 3 separate LED zones controllable
  • Auto, master-slave, sound activate operation
  • Full aluminum housing
  • 5/10/16/32 DMX channels
  • Powercon in & out connection, fixtures linkable
  • Various built-in color marcos
  • Flicker free for TV and Film
  • Double bracket design
  • Control panel with LCD display
Datasheet

Specifications

PHYSICAL

Length: 280 mm (11 in.)
Width: 215 mm (8.5 in.)
Height: 330 mm (13 in.)
Net Weight: 4.5 kg (9.9 lb.)

DYNAMIC EFFECTS

Color mixing: RGBW 4in1 LEDs
Three separate LED zones controllable
Zoom: 15° – 60° motorized
Electronic dimming: 0 – 100%
Strobe and pulse effects: Variable speed and action, random strobe

CONTROL AND PROGRAMMING

Control options: DMX 512, auto program, sound, master-slave
DMX channels: 5/10/16/32
DMX address setting: Control panel with LCD display
DMX compliance: USITT DMX512-A

OPTICS

Light source: 19 x 15Watt LEDs
LED lifetime: 50,000 hours avg.*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming

CONSTRUCTION

Housing: Aluminum
Color: Black
Environment: IP20 indoor use

INSTALLATION

Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.3m (1.0 ft.)
Minimum distance to illuminated surfaces: 3 m(9.8 ft.)

CONNECTIONS

AC power in, thru: PowerCon in & out
DMX data in/thru: 3-Pin XLR in & out(5-Pin optional)

ELECTRICAL

AC power: 100–240 V nominal, 50/60 Hz
Power supply unit: Auto ranging power unit

TYPICAL POWER AND CURRENT

230 V, 50 Hz: 230Watt max.
Allow for a deviation of +/- 10%.

THERMAL

Cooling: Forced ventilation with fans
Maximum ambient temperature (Ta max.): 40° C(104° F)
Minimum ambient temperature (Ta min.): 5° C(41° F)

SHIPPING INFORMATION

In carton:
Carton dimensions: 280 x 280 x 390 mm (11 x
11 x 15.4 in.)
Gross weight: 5 kg (10 lbs.)

*Specifications subject to change without notice.*
